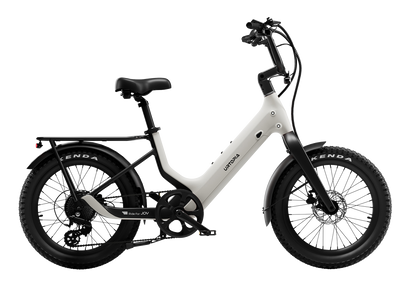

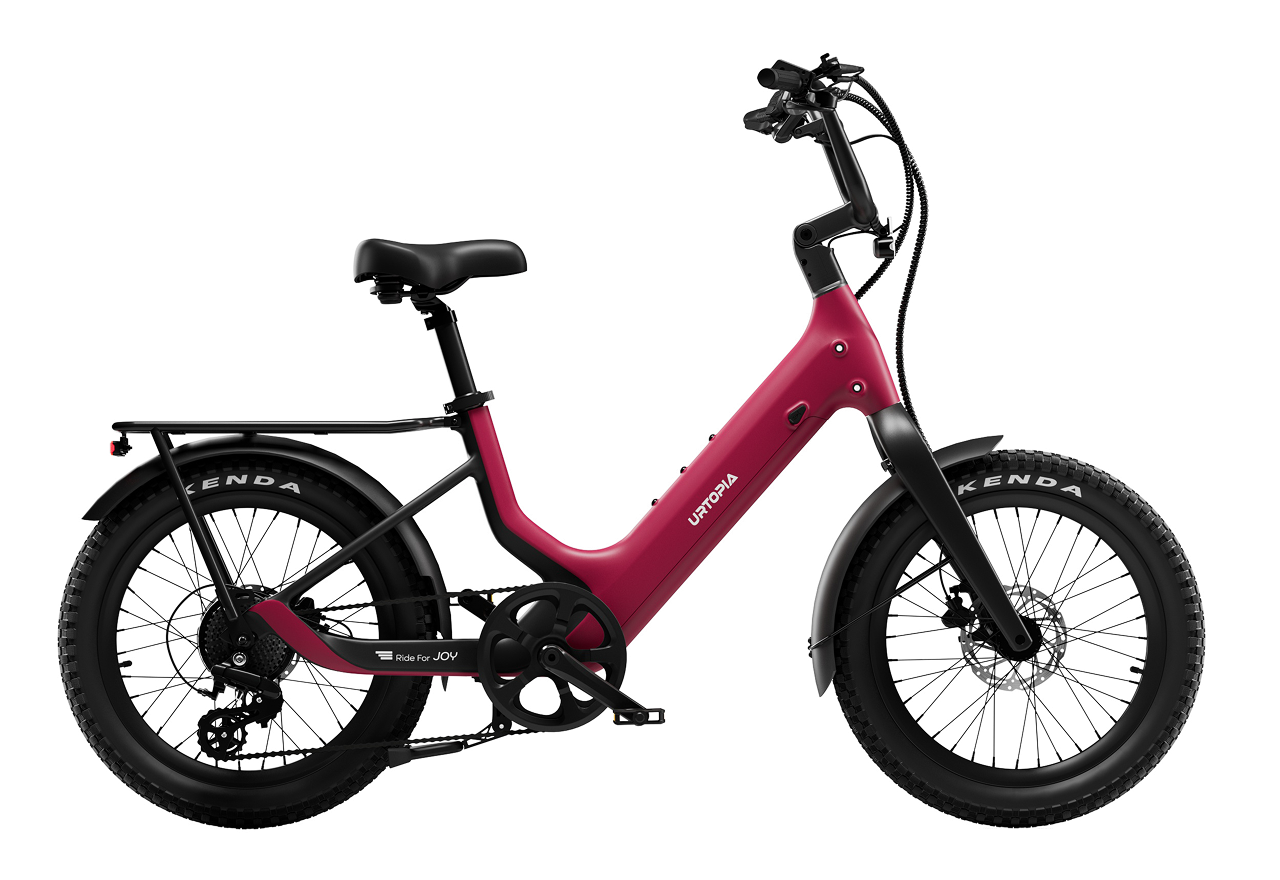

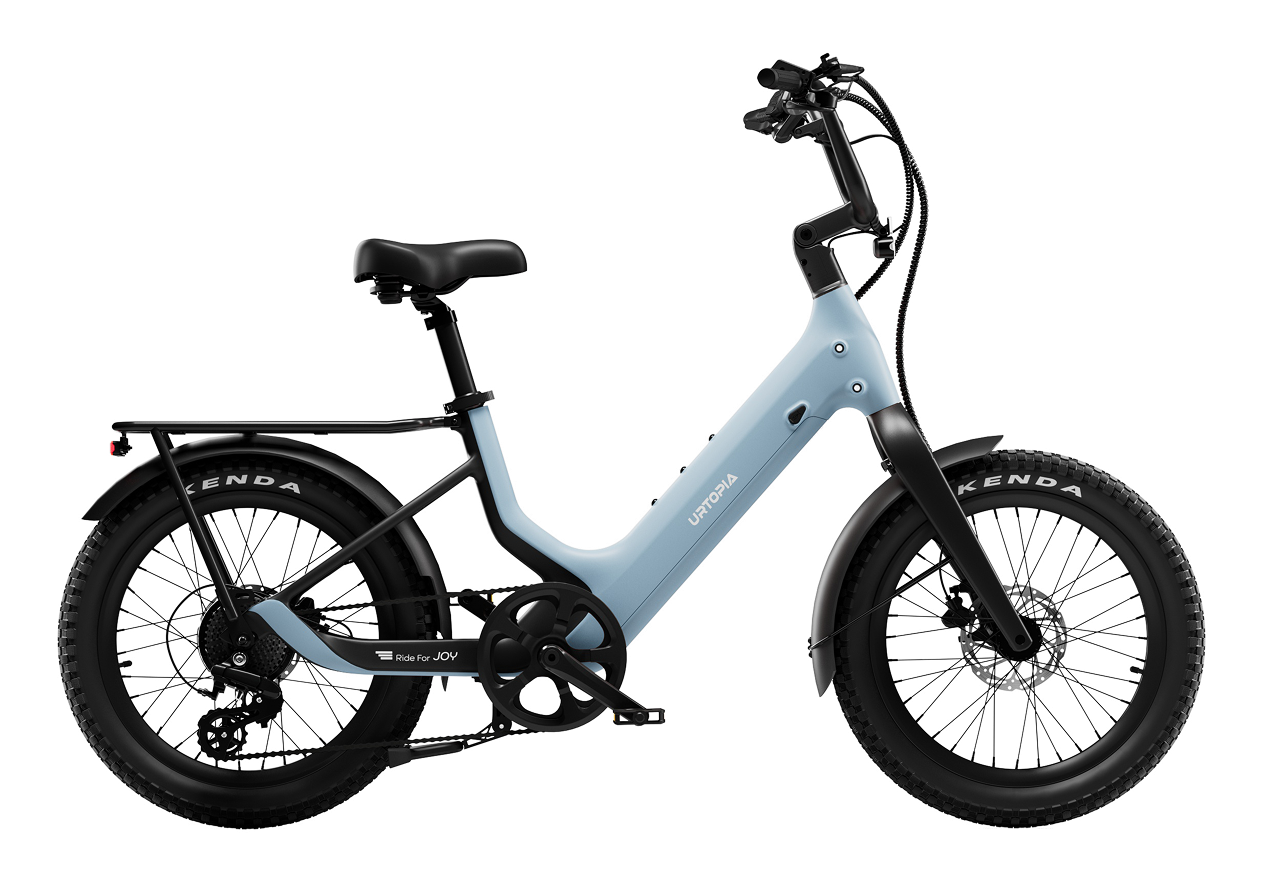

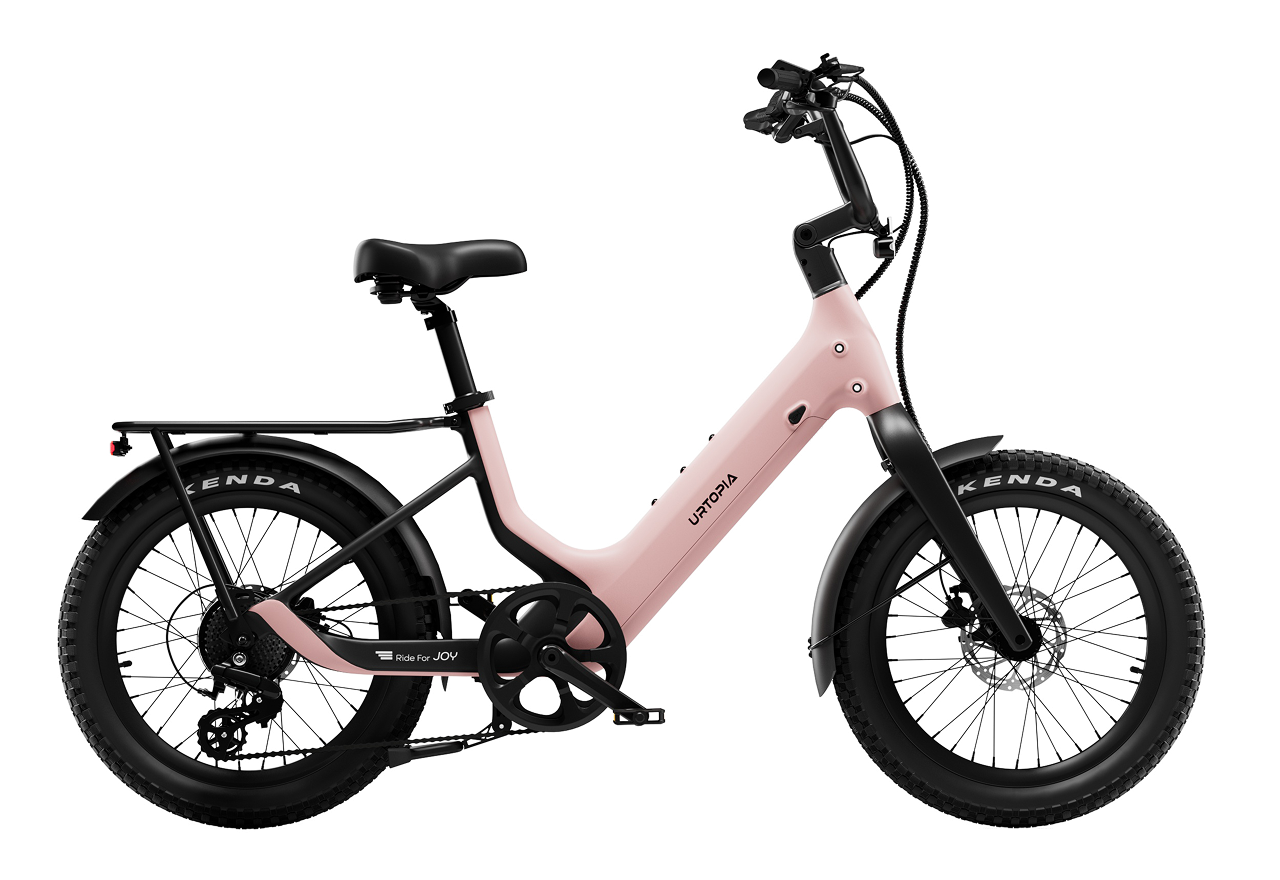

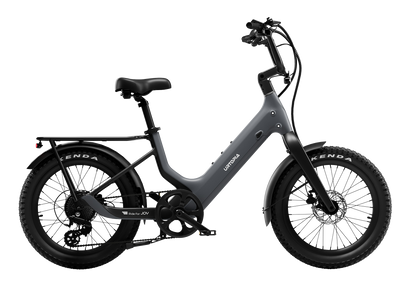

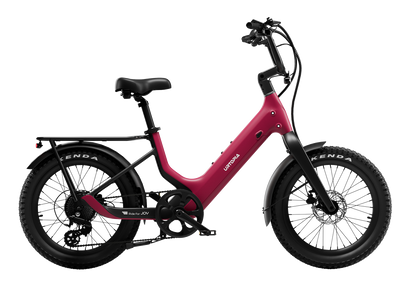

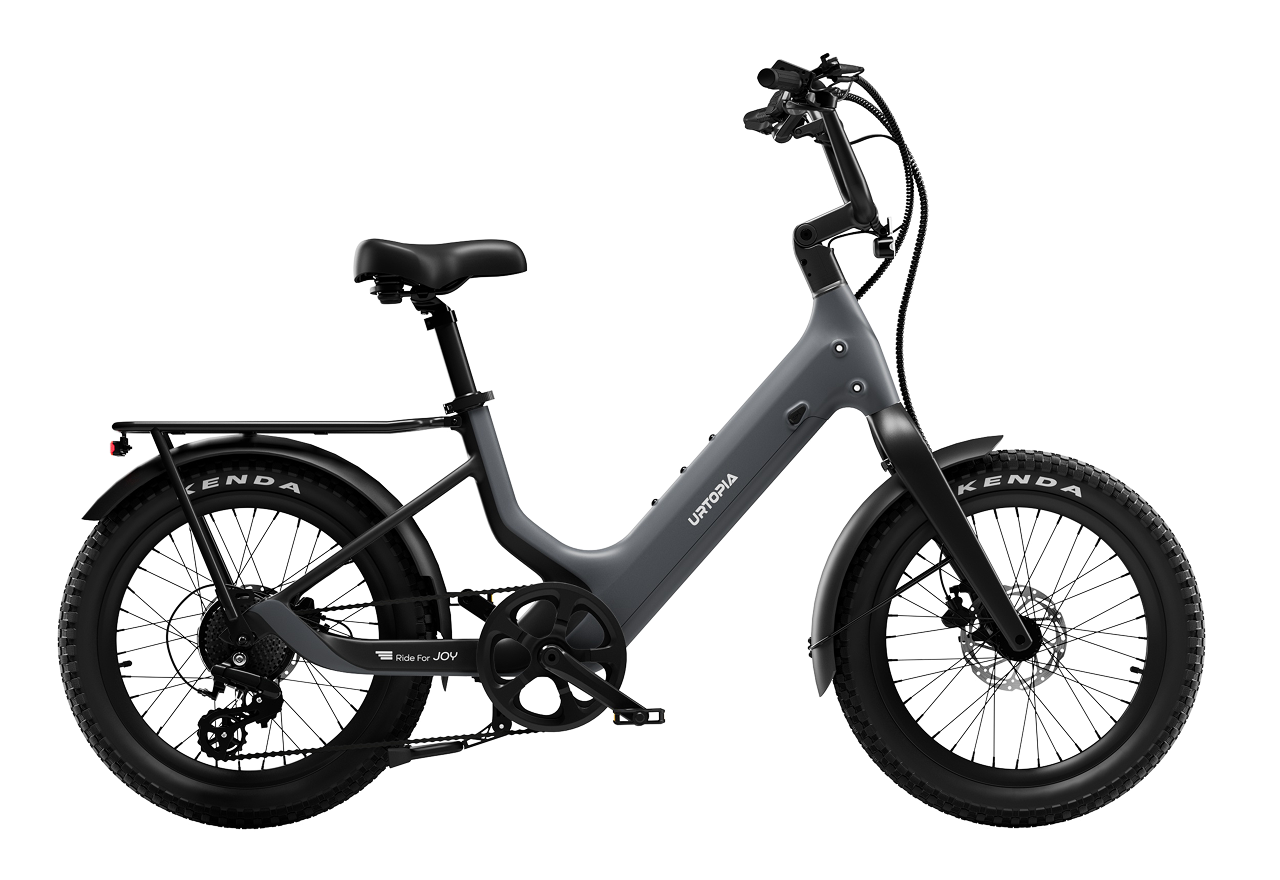

Urtopia Carbon Joy Ultra E-Bike
Urtopia Carbon Joy Ultra E-Bike
42 lb, full carbon frame and fork, 3″ fat tyres and 70 miles of range.
| 42 lbNet weight | 70 miMax range | 500WMotor · 750W peak | CarbonFrame and fork |
Overview
The Carbon Joy Ultra is the lightest fat-tyre bike Urtopia builds. Going to a carbon fork as well as a carbon frame takes it to 42 lb, three pounds under the standard Joy and roughly 30 lb under a typical alloy fat-tyre e-bike.
A 500W rear hub peaking at 750W with 60 N·m of torque handles hills and headwinds, and the removable 529.2Wh Samsung pack covers around 70 miles across four assist modes. TEKTRO hydraulic discs with a power cut-off sensor do the stopping, and the two-stage seatpost plus 0–60° adjustable stem fit riders from 4’11″ to 6’3″.
What stands out
Carbon frame and carbon fork
Carbon at both ends is what gets this bike to 42 lb while still riding smoothly on 3″ tyres. Stiff under power, quiet over rough ground.
Fat tyres, thru-axles
Kenda 20″ x 3.0″ rubber on thru-axles gives confident grip on gravel, sand and wet city streets, with far more precise wheel alignment than quick-release.
TEKTRO hydraulic discs
With a power cut-off sensor, so touching a lever kills assistance instantly. Consistent lever feel in any weather.
Two-stage seatpost
100 mm of inner and 120 mm of outer adjustment, which is why one frame covers a 16-inch spread of rider heights.
529.2Wh Samsung pack
Removable, UL 2271 certified, 3.5 hour recharge, four assist modes: Eco, Tour, Boost and Turbo.
Technical specifications
| General | |
| Model | Carbon Joy Ultra E-Bike |
| Frame material | Carbon fiber frame and fork |
| Net weight | 42 lb without accessories |
| Range | Up to 70 miles |
| Top speed | 20 mph as delivered, 25 mph once unlocked |
| Total weight limit | 330 lb |
| Rider height | 4’11″ – 6’3″ |
| Brakes | TEKTRO hydraulic disc with power cut-off sensor |
| Wheels and tyres | Kenda 20″ x 3.0″, thru-axle |
| Water resistance | IP65 |
| Class | Class 2 |
| E-bike system | |
| Motor | 500W rear hub, 750W peak, 60 N·m |
| Battery | 529.2Wh Samsung lithium-ion, removable, UL 2271 |
| Throttle | Yes, up to 20 mph |
| Pedal assist | 4 levels: Eco, Tour, Boost, Turbo |
| Charger | 3.5 hour fast charger |
| Sensor | Torque sensor |
| Lights | Front external light, 30 lux; external rear tail light |
| Drivetrain | |
| Chainring | 50T |
| Crankset | Aluminium alloy, 152 mm |
| Cassette | 12–32T, 8-speed |
| Chain | Shimano 8-speed |
| Rear derailleur | Shimano 8-speed |
| Shifter | 8-speed trigger |
| Pedals | PP, 103 x 84 x 24 mm |
| Cockpit | |
| Handlebar | Aluminium, stem extender adjustable 0–60° |
| Grips | Ergonomic lockable grips |
| Saddle | Comfort saddle, 273 x 160 x 75 mm |
| Seatpost | Aluminium alloy, two-stage: Ø30.9 mm inner / Ø34.9 mm outer, 100 mm and 120 mm adjustment |
| Shipping | |
| Shipping weight | 57 lb (bike plus packaging) |
In the box
- Urtopia Carbon Joy Ultra e-bike, 95% pre-assembled
- Fast charger and power cable
- Two smart keys
- Assembly tool kit and mounting hardware
- Quick-start guide and 2-year warranty card
Shipping weight 57 lb (bike plus packaging). Range figures are manufacturer estimates measured with a 180 lb rider in the lowest assist mode on flat ground; real-world range varies with rider weight, terrain, tyre pressure, temperature and assist level. Class settings and top speed must comply with local regulations. Sold and serviced by All Gadget World, an authorised Urtopia dealer — 2-year manufacturer warranty included.
